FDM 3D Printers
FDM 3D printers, also known as Fused Deposition Modeling 3D printers or filament 3D printers. FDM is an abbreviation of “Fused Deposition Modeling”. This technology involves extruding thermoplastic filaments through a heated nozzle, which melts the material. The printer then deposits the molten filament layer by layer, following a predetermined path, to build up the 3D object from the bottom up. After each layer is deposited, the build platform lowers, and the next layer is applied, adhering to the previous one. FDM is one of the most widely used 3D printing technologies, known for its simplicity, versatility, and cost-effectiveness.

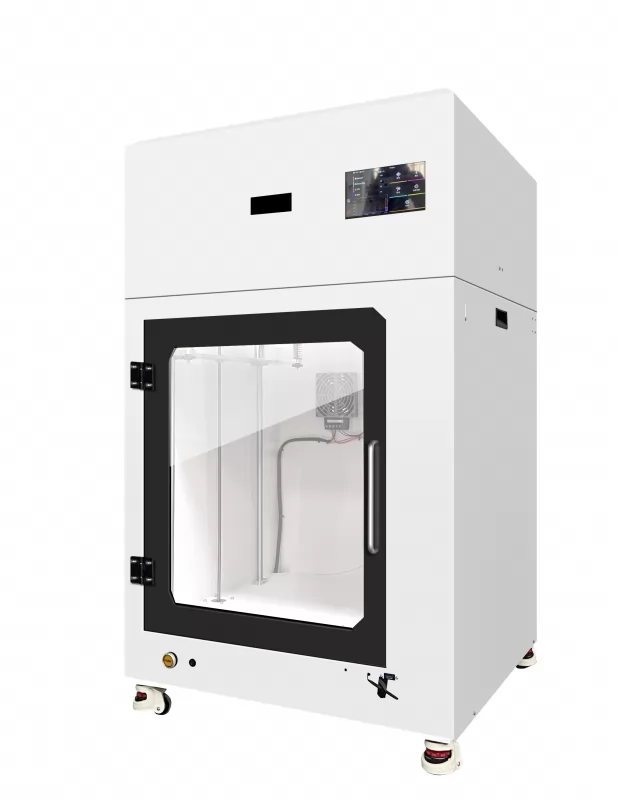

FDM 3D Printer 1000
Printing Size: 1000*1000*1000mm
Machine Size: 1200*1350*1850mm
Printing Speed: 30-350mm/s
Nozzle Temperature: Max 320℃
Number of Nozzles: 1
Printing Color: Single Color
Features
- Klipper High-Speed System.
- Closed-Loop Servo Motor
- Linear Industrial Module
- Extra-Large Print Size: 1000*1000*1000mm
- Fast Printing Speed, Up to 500mm/s
- Stable Printing
- Custom Ball Screw, 12mm Aluminum Plate Platform with a Maximum Load of Over 80kg
- Independent Material Storage Box
Technical Specifications
FDM 3D Printer 3040
Printing Size: 300*300*400mm
Machine Size: 530*520*825mm
Printing Speed: 30-350mm/s
Nozzle Temperature: Max 320℃
Number of Nozzles: 1
Printing Color: Single Color
Features
- Klipper high-speed system
- 5-inch HD capacitive touchscreen
- Industrial-grade linear guides for XY axis
- Leadshine high-precision servo motors for XY axis (closed-loop drive)
- Dual Z-axis synchronized integrated leadscrews
- BMG dual gears
- 70W high-power heating rod, Volcano nozzle extruder for high-speed printing
- Internal temperatures up to 60℃, easily printing high-temperature material
Technical Specifications

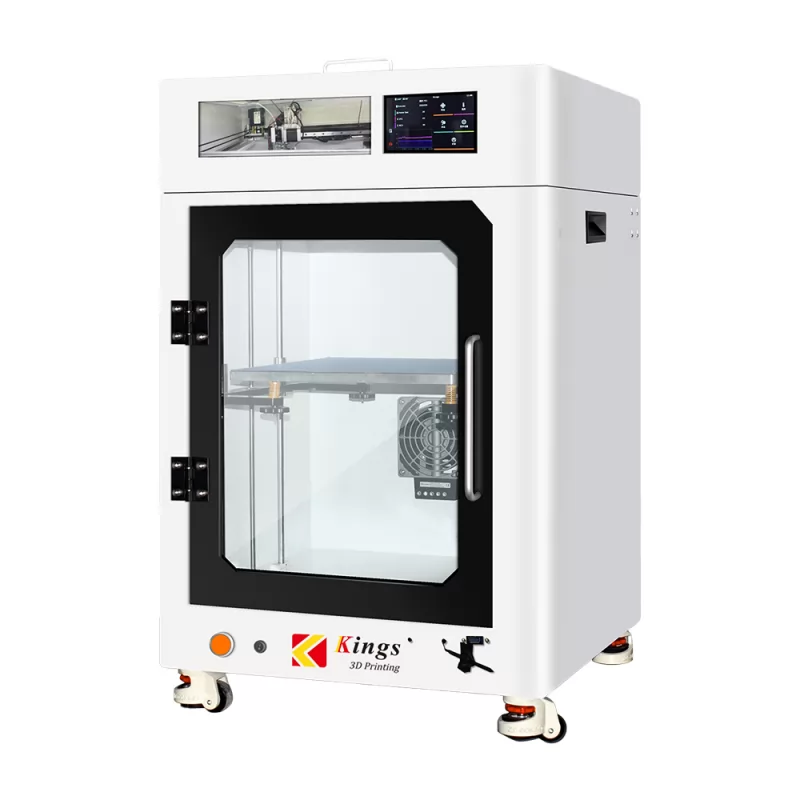

Kings 3D FDM Printer 5060
Printing Size: 500*500*60mm
Machine Size: 670*720*1230mm
Printing Speed: 30-350mm/s
Nozzle Temperature: Max 320℃
Number of Nozzles: 1
Printing Color: Single Color
Features
- Klipper High-Speed System.
- 7-inch HD capacitive touchscreen
- Industrial-grade linear guides for XY axis
- Leadshine high-precision servo motors for XY axis (closed-loop drive)
- Dual Z-axis synchronized integrated leadscrews
- BMG dual gears
- 70W high-power heating rod, Volcano nozzle extruder for high-speed printing
- Internal temperatures up to 60℃, easily printing high-temperature materials

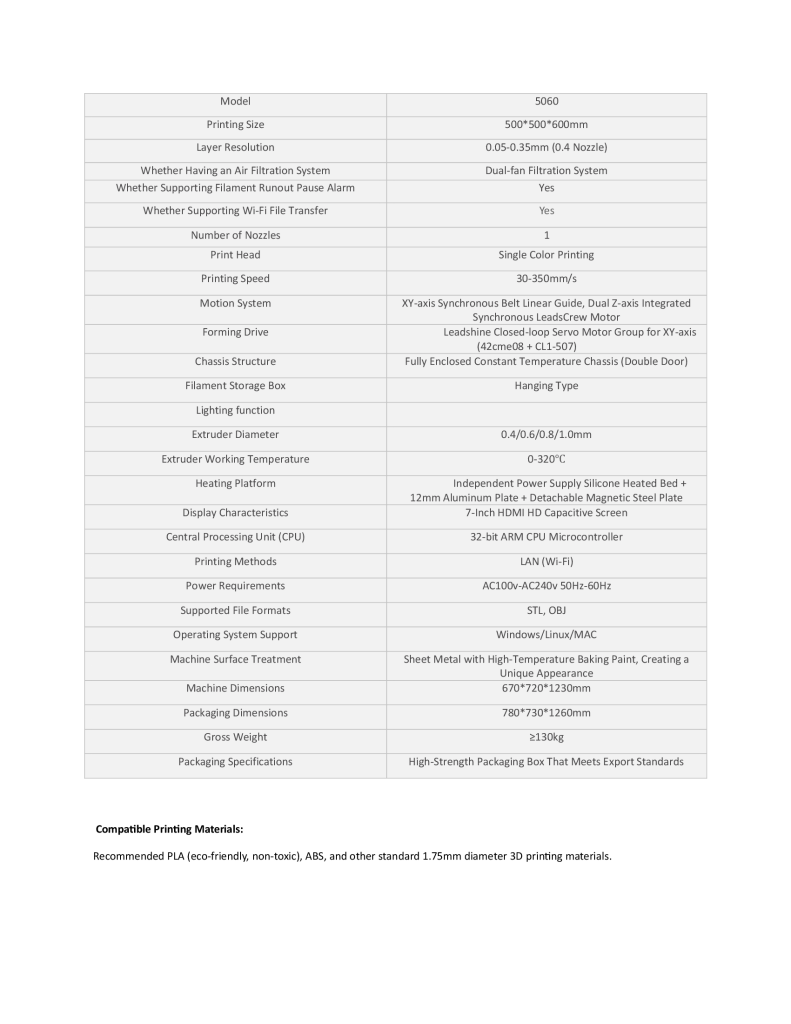

Technical Specifications
