Composite 3D Scanner

A Composite 3D Scanner is a high-performance device that combines multiple scanning technologies—such as laser scanning, structured light, and photogrammetry—to achieve exceptional accuracy, speed, and flexibility. These scanners are ideal for capturing complex geometries and surfaces across various materials and environments, making them a top choice for industries like automotive, aerospace, energy, and industrial design.

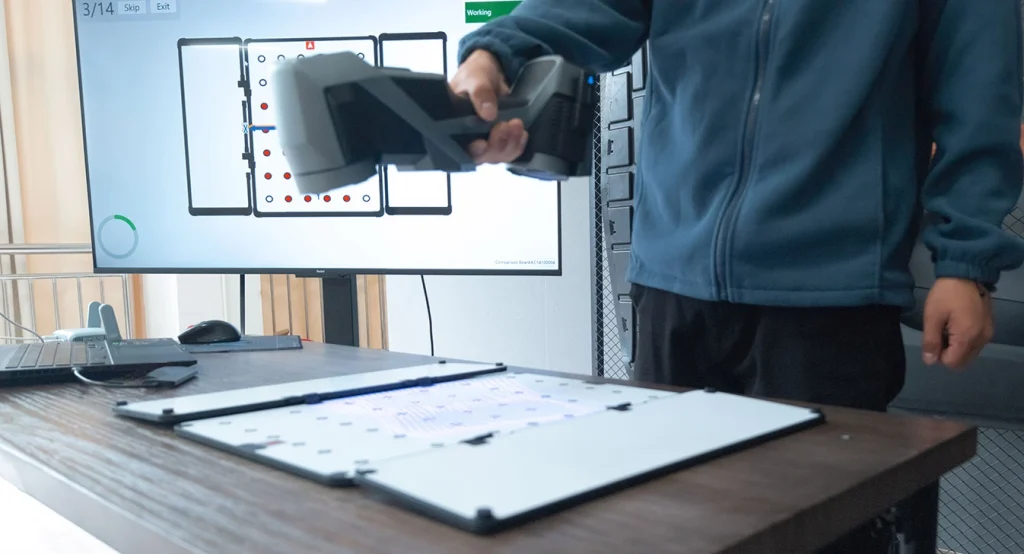

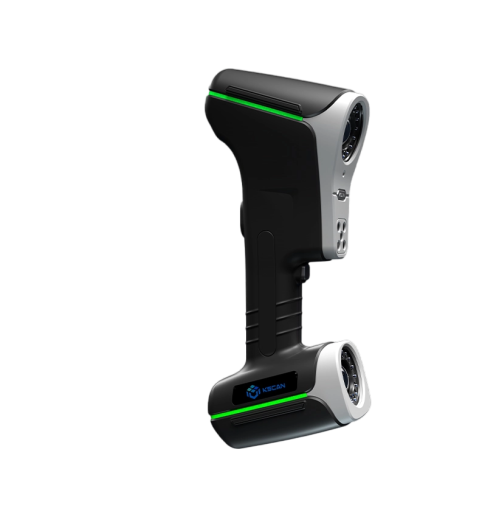

KSCAN-E Intelligent and Wireless Large-area 3D Scanner

The flagship KSCAN-E is an intelligent, wireless, and all-in-one 3D scanner designed to redefine industrial measurement with unmatched precision and efficiency. Whether scanning large surfaces or fine details, its 6 operating modes ensure full-field and high-quality data capture. With a built-in computing module and dual power system, it delivers seamless, wireless operation for maximum flexibility in any environment.

With an accuracy up to 0.020 mm, the KSCAN-E meets the demands of even the most challenging applications. From aerospace and automotive to heavy industry and energy, KSCAN-E delivers a precise, flexible, and intelligent 3D solution, making everything from design verification to quality control smarter and more efficient.

4 Key Features, Redefining the Standard for Productivity Tools

Ultra‑High Accuracy

Delivers precision up to 0.020 mm, ensuring industry-grade performance

Six Versatile Modes

ultra-fast, hyperfine, large-area, deep-hole, edge, and photogrammetry

Built‑in Photogrammetry

Enhances volumetric accuracy and mitigates drift over large scan areas

Wireless Operation

Onboard computing, a built-in battery system, and Wi‑Fi 6 dual‑network support

Exceptional User Experience

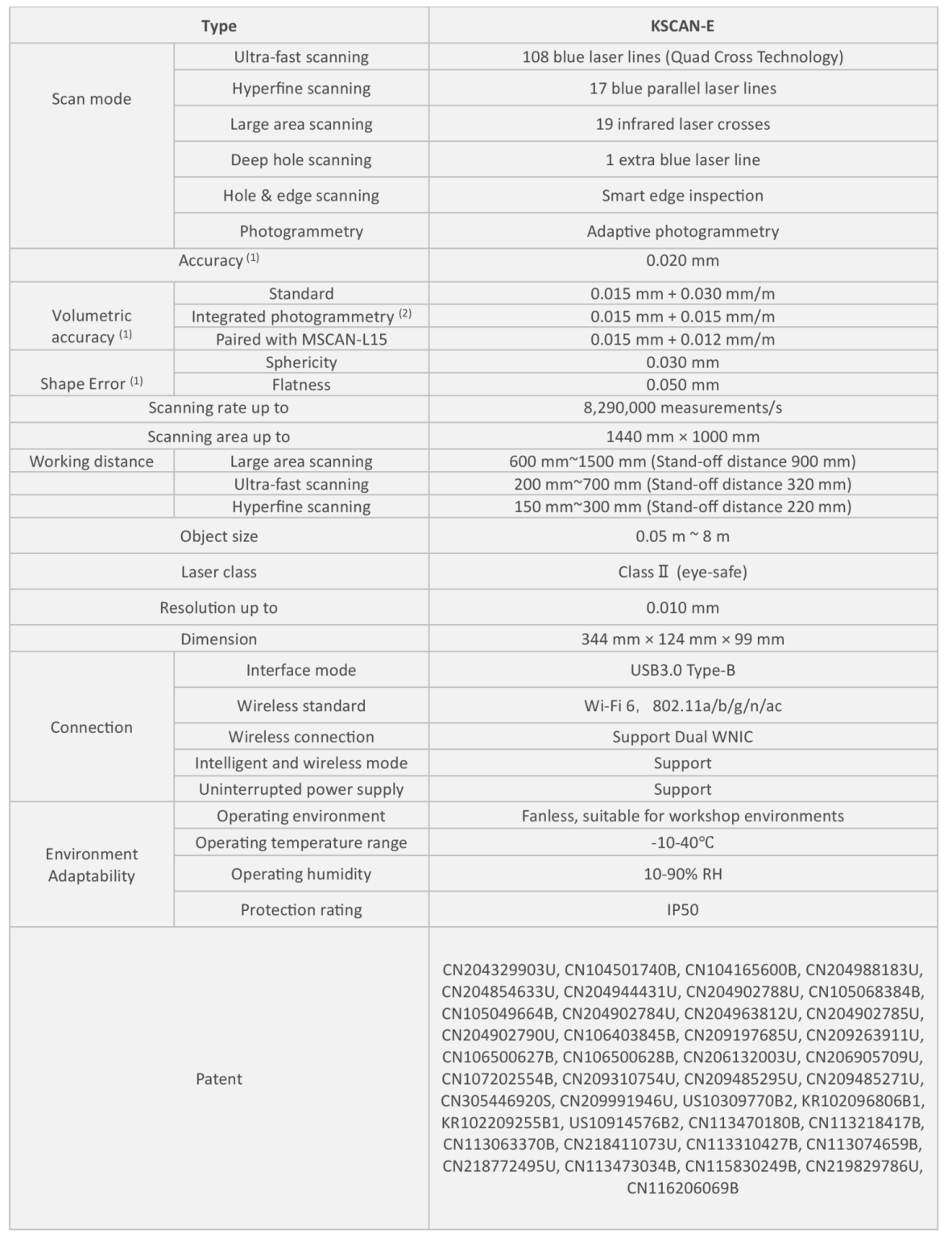

Technical Specifications

ISO 17025 accredited: Performance is evaluated based on ISO 10360-13 standard, VDI/VDE 2634 Part 3 and JJF1951 specification.
Paired with 800-mm high-precision scale bar.

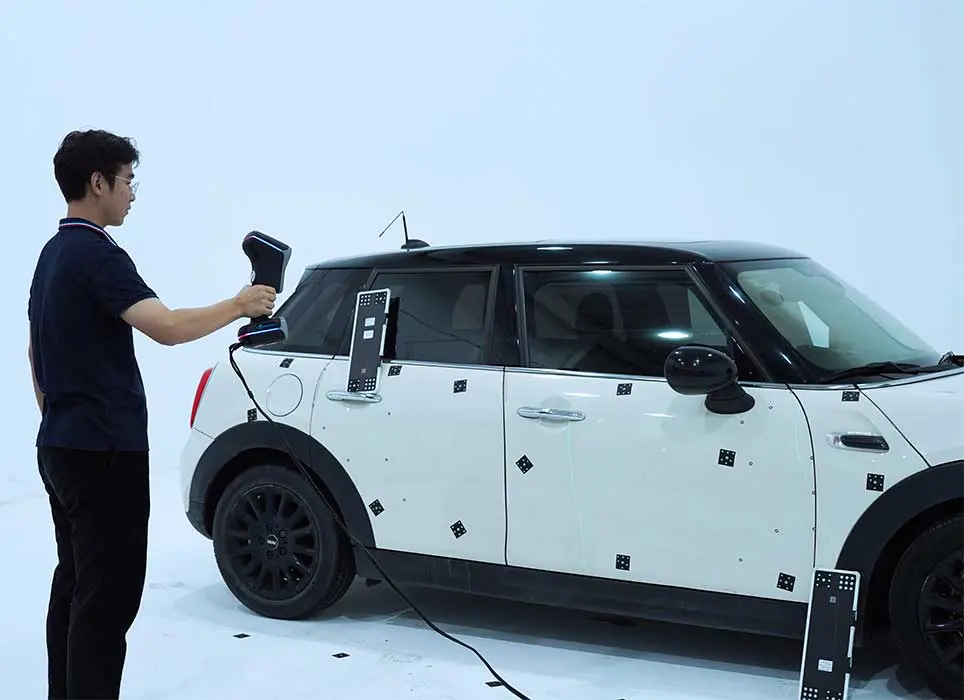

KSCAN-X Intelligent and Wireless Large-area 3D Scanner

KSCAN-X is an intelligent, wireless large-area 3D scanner that sets a new standard for large-scale 3D measurements.

Featuring wireless operation, ultra-wide scanning area, extended depth of field, and fast scanning, the KSCAN-X offers smooth and high-precision 3D measurements for ultra-large and large to medium-sized parts across industries such as aerospace, heavy industry, and rail transportation. Designed to boost efficiency and deliver accurate quality control, the KSCAN-X is the ultimate solution for advanced manufacturing.

4 Key Features, Redefining the Standard for Productivity Tools

Wide Scanning Area

Capable of capturing up to 2.6 m × 1.8 m in a single scan, ideal for ultra-large parts

Extended Depth of Field

Ranging from 0.3 m to 2.5 m, high precision across varying object sizes and distances

Wireless Operation

Onboard computing, dual‑battery power, and dual‑Wi‑Fi NIC design

Quad‑Cross Blue Laser

Utilizes 4 × 21 quad‑cross blue laser lines, offering high frame rate (up to 180 fps)

Exceptional User Experience

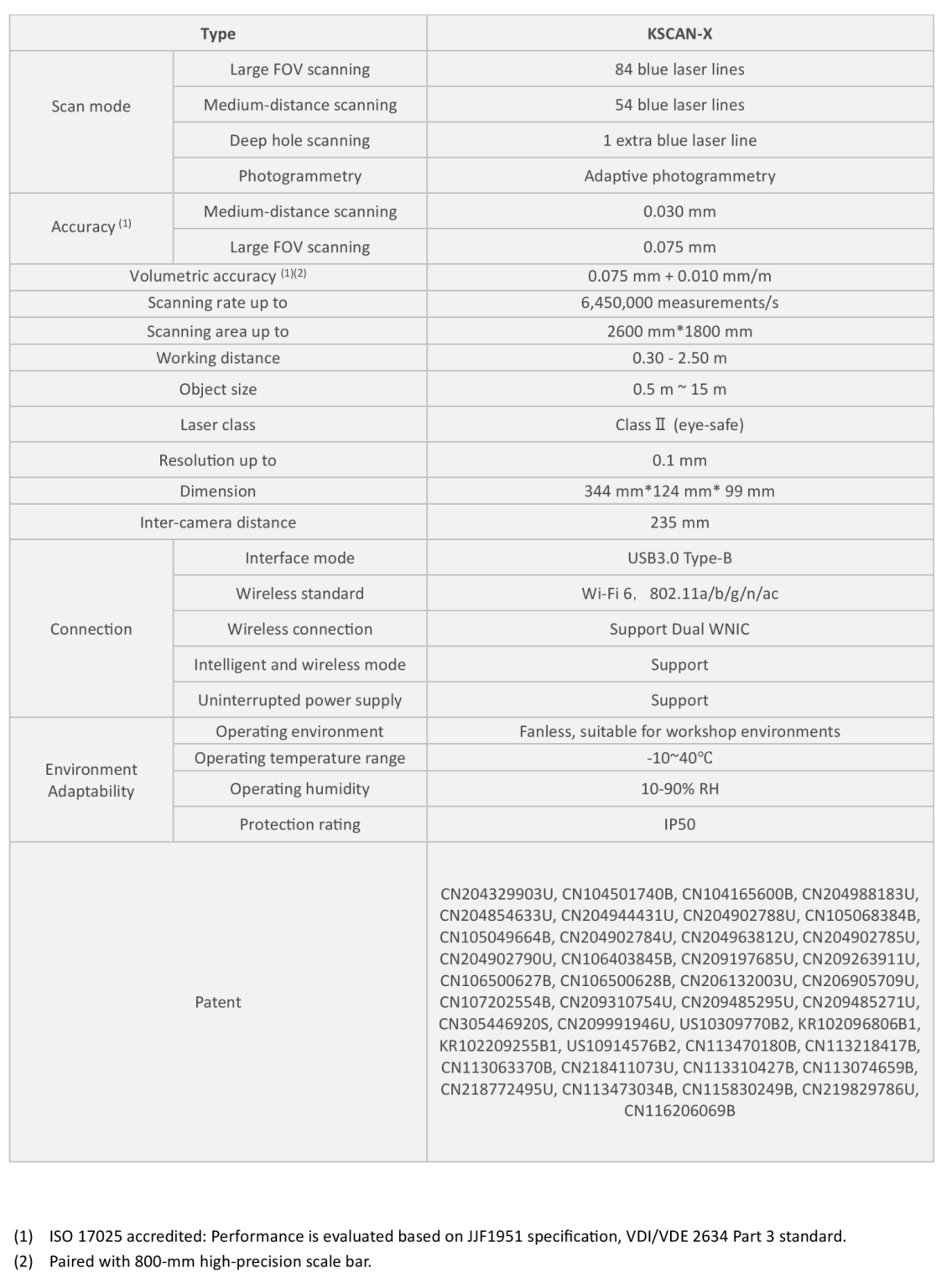

Technical Specifications

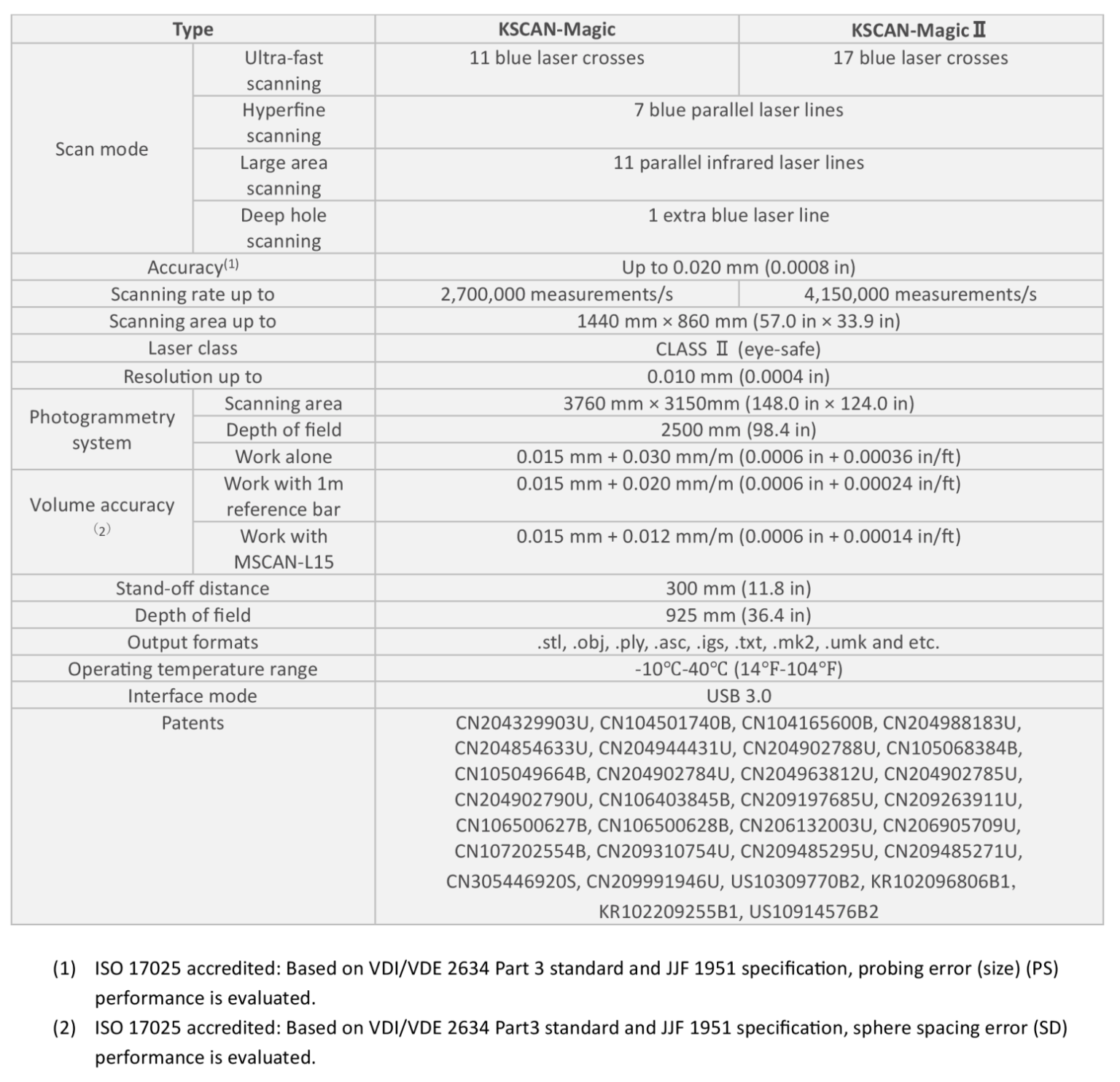

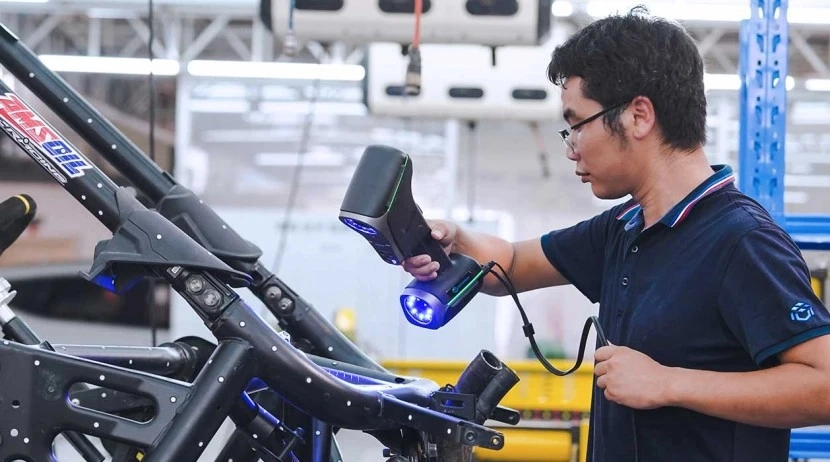

KSCAN-Magic Series Composite 3D Laser Scanner

Introducing the KSCAN-Magic Upgrade 3D scanner Series: an innovative fusion of cutting-edge composite 3D scanning that integrates both infrared and blue laser. This unique 3D object scanner ensures versatility and applicability across a wide range of industries. Engineered for precision and versatility, our comprehensive handheld 3D scanner boasts five distinct modes of operation – large-area scanning with parallel infrared lasers, ultra-fast scanning with blue laser crosses, hyperfine scanning with blue parallel lasers, deep-hole scanning with a single blue laser, and a built-in large-area photogrammetry system.

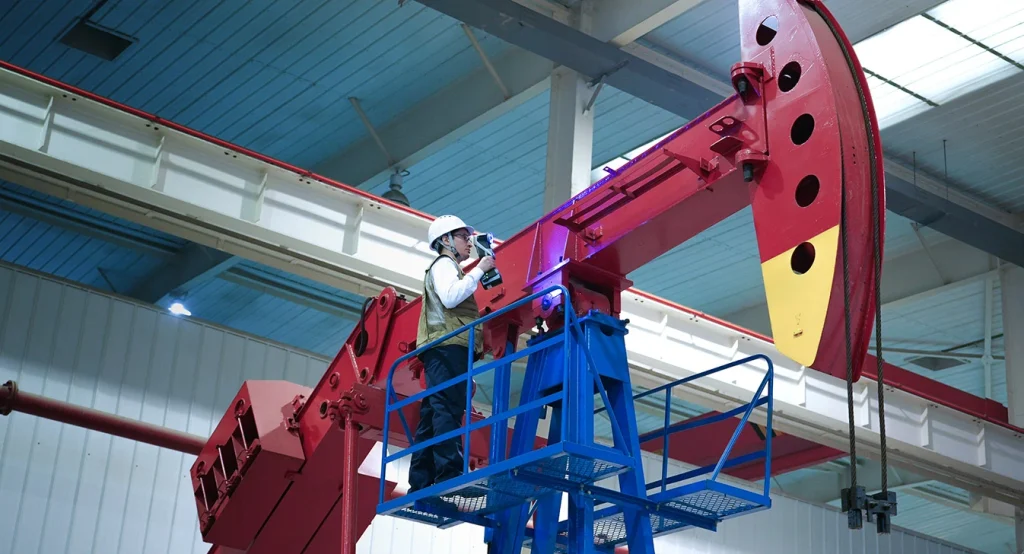

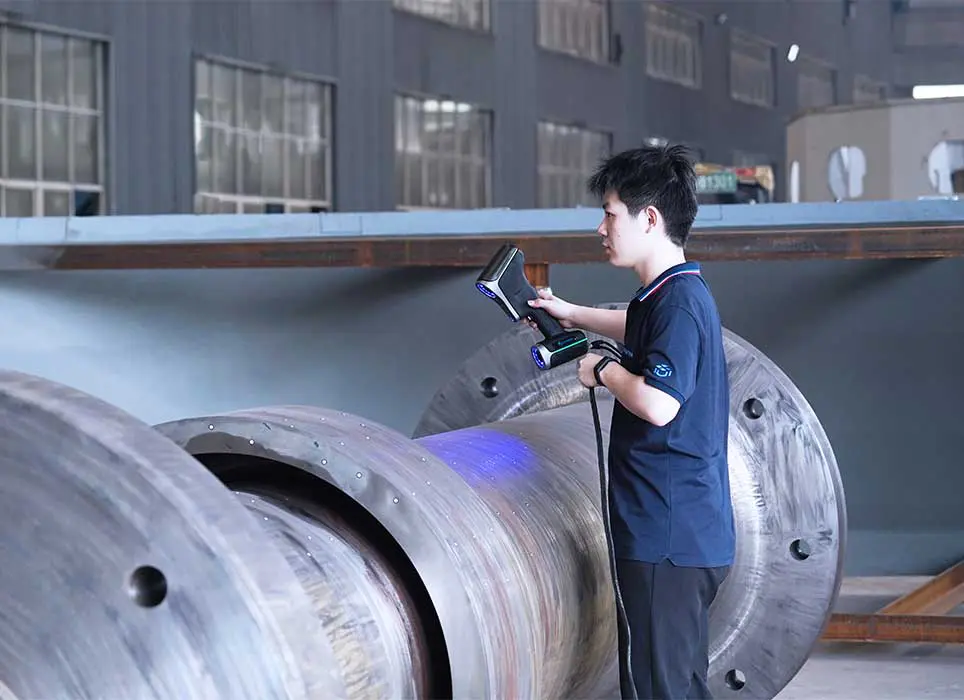

KSCAN-Magic 3D object scanner features fast scanning speeds, high precision, and the ability to capture fine details over large areas with a deep field of view. It excels in measuring dark and reflective surfaces, suitable for industrial parts like wind turbines, automotive bodies, and hydro-power equipment.
